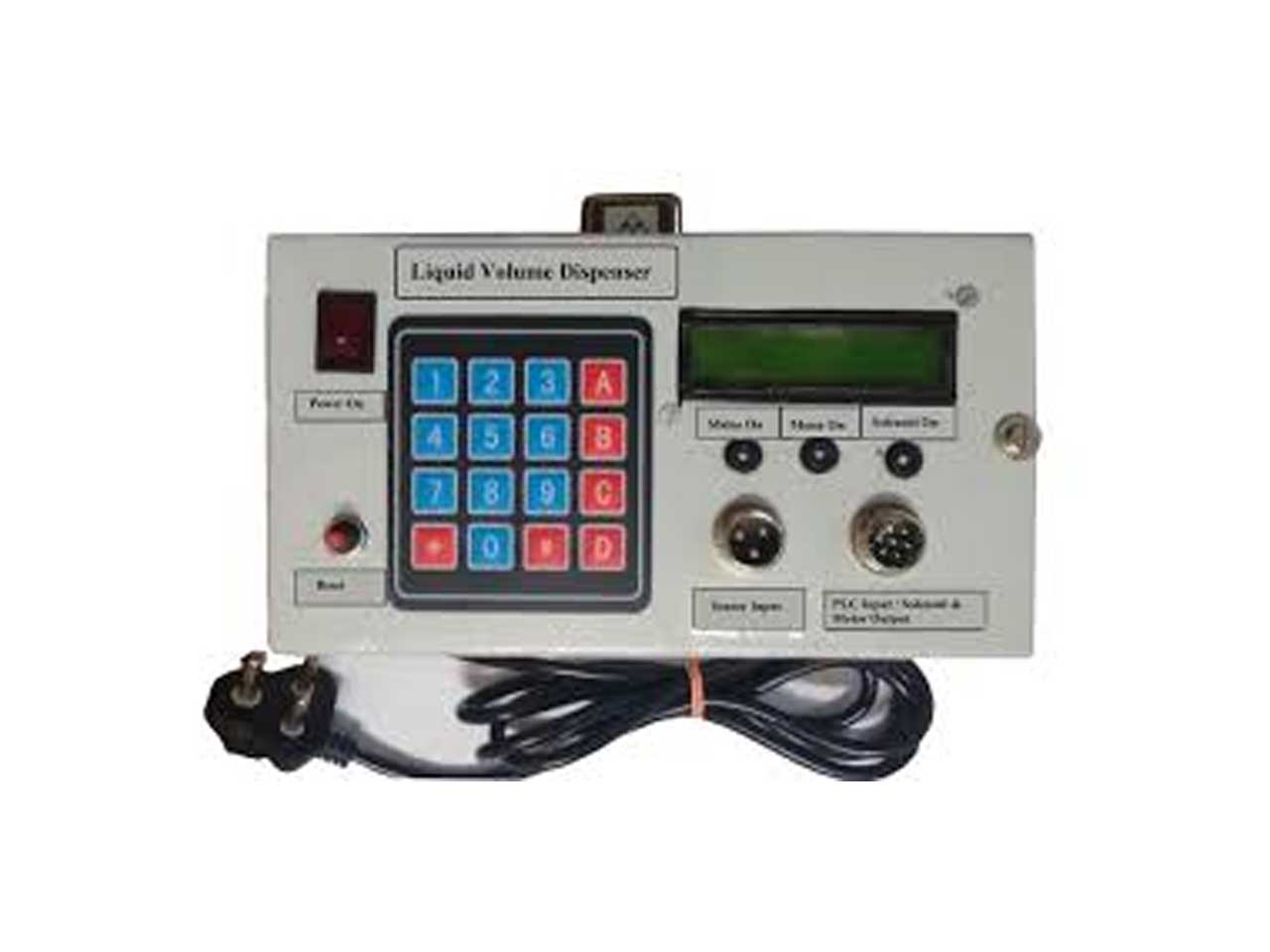

This fully automatic unit measures the volume of liquid flowing through a pipe and closes solenoid valve when desired volume of liquid is dispensed. Here initially user needs to set the required volume of liquid using keypad. Once the volume is set, the unit opens solenoid valve and starts measuring volume of liquid. Once the set volume is reached, it closes solenoid valve again.

Features and Benefits

• Metal Enclosure, Easy installation, low maintenance
• Can be easily operated by PLC, by giving simple trigger pulse
• Separate Potential free contacts for connection with Motor and Solenoid Valve
• Supports Single Phase
• LED indications for Motor ON, Solenoid On and Mains On.
• The unit can be used for water flow from 1L/ Min to 30 L/ Min with default flow sensor. But we also provide customized unit as per customer's requirement. (Can be customized for different fluids and flow rates)
• Set Volume and Actual dispensed volume are continuously displayed on LDC.
• User settable "Set Volume"
• This can be best low cost substitution for volume measurement meter / flow meters.

Application

Chemical Industries, Process plants, Food Industries where accurate volume of liquid is required and process is repeated.
